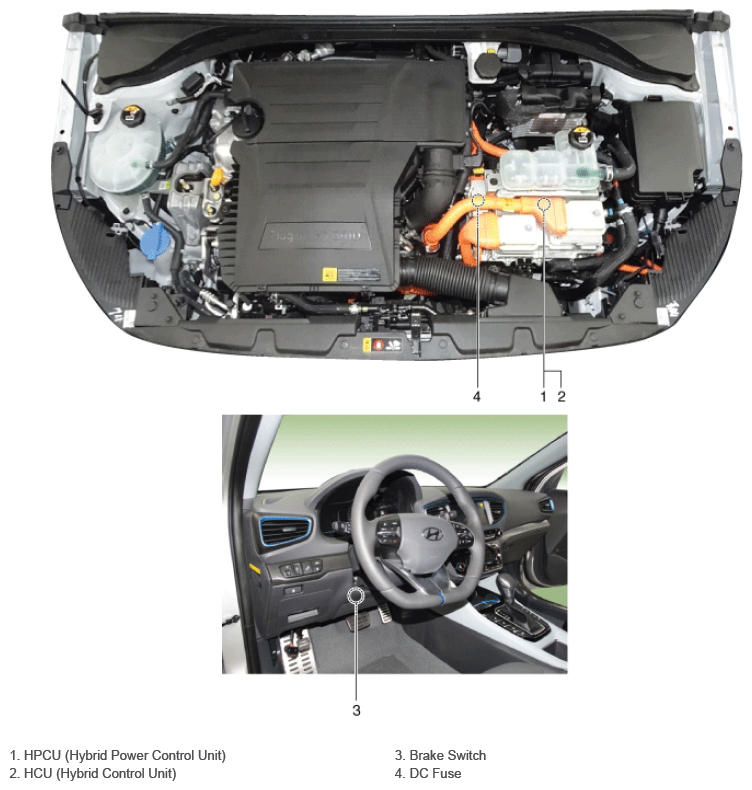

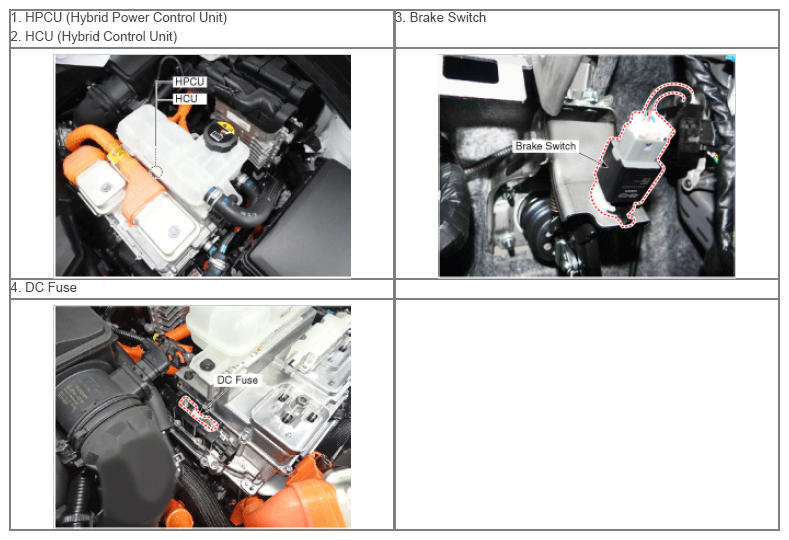

Component Location
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).
NOTE:
For the location of the other control modules, refer to the relevant article.
