Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower cover.

    (Refer to Body - "CRASH PAD ")

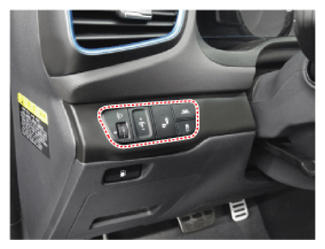

  3. Disconnect the crash pad side switch assembly.
    G12729515Courtesy of HYUNDAI MOTOR AMERICA
  4. Check the continuity between the switch terminals as the ESP OFF switch is engaged.
    G12729516Courtesy of HYUNDAI MOTOR AMERICA
