Repair Procedures: Inspection

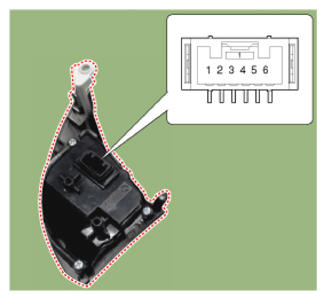

  1. Remove the cruise control switch.
    G12725890Courtesy of HYUNDAI MOTOR AMERICA
  2. Measure resistance between terminals on the control switch when each function switch is ON. (switch is depressed)
    Function switch Terminal Resistance (± 5%)
    CANCEL 2-3 330Ω
    SET<-) 2-3 550Ω
    RES {+) 2-3 880Ω
    CRUISE 2-3 1.44 kΩ
    SCC 3-5 5.54 kΩ
  3. If not within specification, replace switch.
