Repair Procedures: Inspection

  1. Turn off the ignition switch.
  2. Remove the battery and tray.

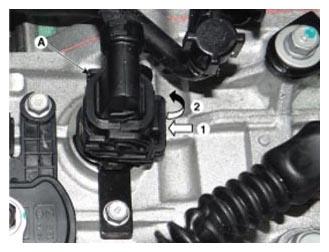

  3. Disconnect the solenoid valve connector (A).
    G12981245Courtesy of HYUNDAI MOTOR AMERICA
  4. Measure the resistance between solenoid valve signal terminal and ground terminal.
  5. Check that the measured resistance is within the specification.
