Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).
    G12971628Courtesy of HYUNDAI MOTOR AMERICA

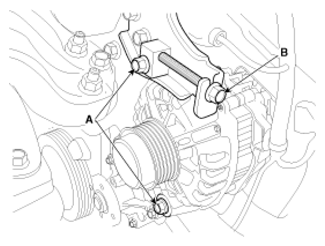

  3. Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.
    G12971629Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the drive belt (A).
    G12971630Courtesy of HYUNDAI MOTOR AMERICA

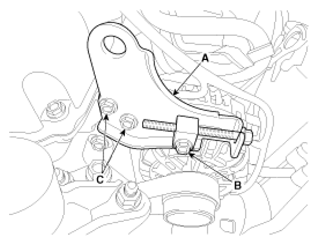

  5. Remove the alternator brace assembly (A) after loosening the mounting upper bolt (B) and brace mounting bolts (C).
    G12971631Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the alternator mounting low bolt (A), and then remove the alternator.
    G12971632Courtesy of HYUNDAI MOTOR AMERICA
