Repair Procedures: Inspection
- Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.

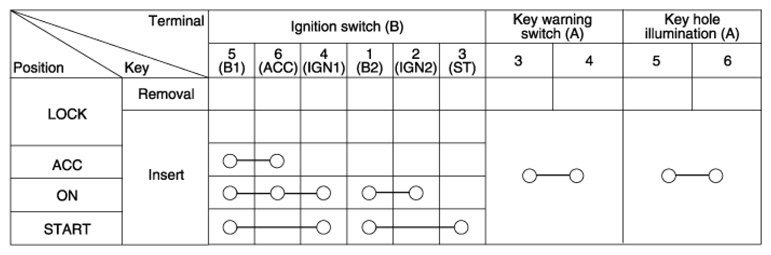

- Check for continuity between the terminals.
- If continuity is not specified, replace the switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|
