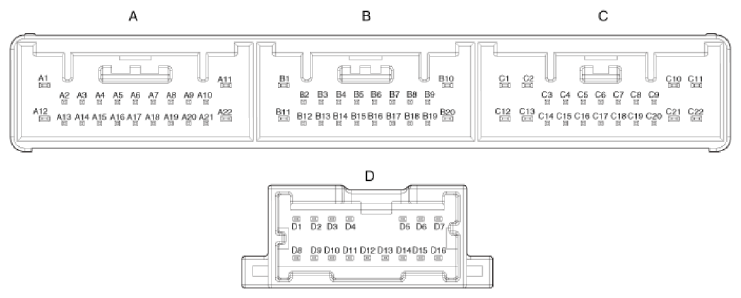

Body Control Unit
 Courtesy of HYUNDAI MOTOR AMERICA
|
| Pin |
Function |
| C11 |
Heated handle |
| C22 |
Ignition 2_Heated handle power |
| A16 |
Heated handle switch |
| C19 |
NTC (-) |
| B6 |
NTC (+) |
| D3 |
Heated handle IND. |
