GDS data Analysis

  1. Connect GDS to Data Link Connector (DLC).
  2. Turn "ON" the ignition switch.

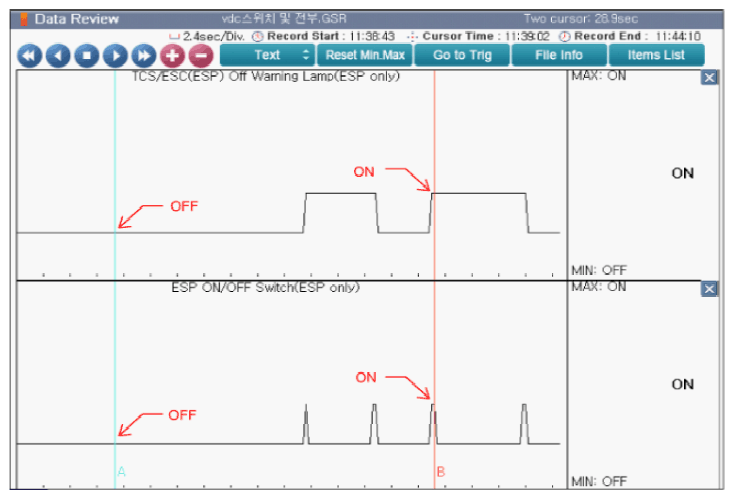

  3. Check the "Current Data" about related DTC with GDS.
    G13025779Courtesy of HYUNDAI MOTOR AMERICA
  4. Are the parameters displayed correctly?

    YES

    • Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
