Repair Procedures: Inspection

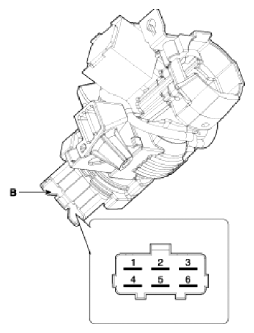

- Disconnect the Key Warning Switch Connector (A) and Ignition Switch Connector (B) from the Steering Column.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

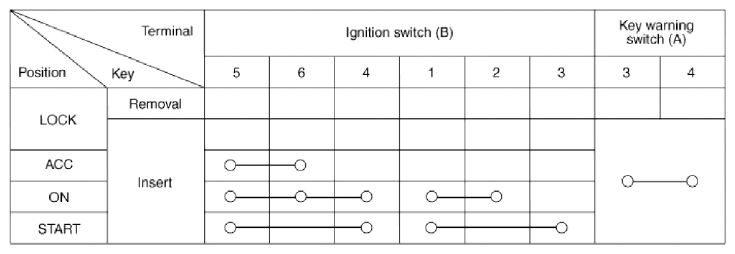

- Check for Continuity between the Terminals.
- If Continuity is not specified, replace the Switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|
