Heated Steering Wheel Control Unit

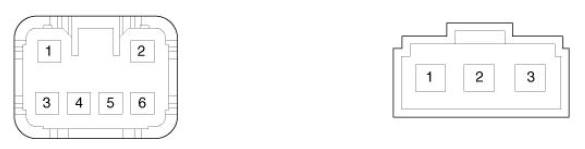

G12600802Courtesy of HYUNDAI MOTOR AMERICA
NO PIN ID COLOR
1 IGN1 RED
2 GND BLACK
3 IGN1 ORANGE
4 LED GREEN
5 SW WHITE
6 N/C -
NO PIN ID COLOR
1 HEATER YELLOW
2 NTC RED/BLACK
3 GND BLACK
