Monitor GDS Data
- Connect GDS to Data Link Connector (DLC).
- Turn the ignition switch and engine "ON".

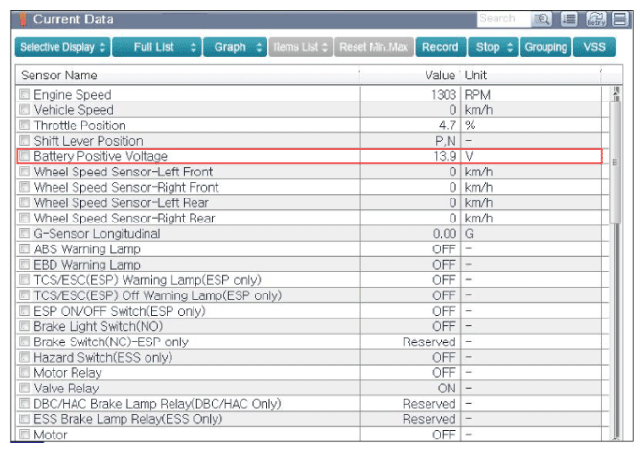

- Monitor the "BATTERY VOLTAGE" parameter on the "Current Data" menu of the GDS.
Specification :Above. 9.5 ± 0.5V
- Does the parameter display data within specifications?
YES
- Fault can be intermittent, caused by poor connection. Or, ESP (ESC) memory was not cleared after it was repaired. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
NO
- Go to next step.
