Check The Power Source Circuit
- Disconnect the connector from the ABS control module.

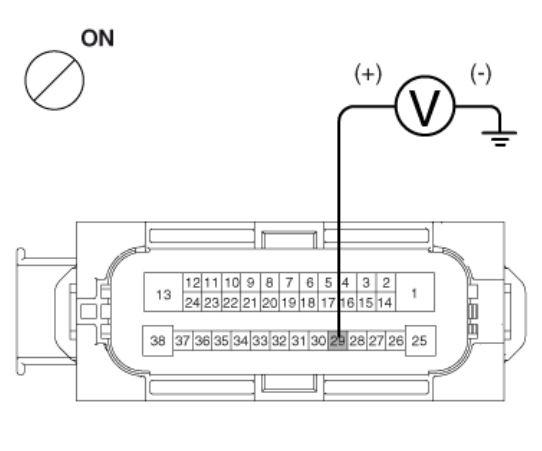

- Turn the ignition switch ON, measure the voltage between terminal 29 of the ABS control module harness side connector and body ground.
Specification: approximately B+
- Is the voltage within specification?
YES
- Check the ground circuit.
NO
- * Check the harness or connector between the fuse (10A) in the Engine Compartment Junction Block and the ABS Control Module. Repair if necessary.
