Home
>>
Hyundai
>>
2019
>>
Accent SE, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Main Power Window Switch (Front, Driver Auto Down)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

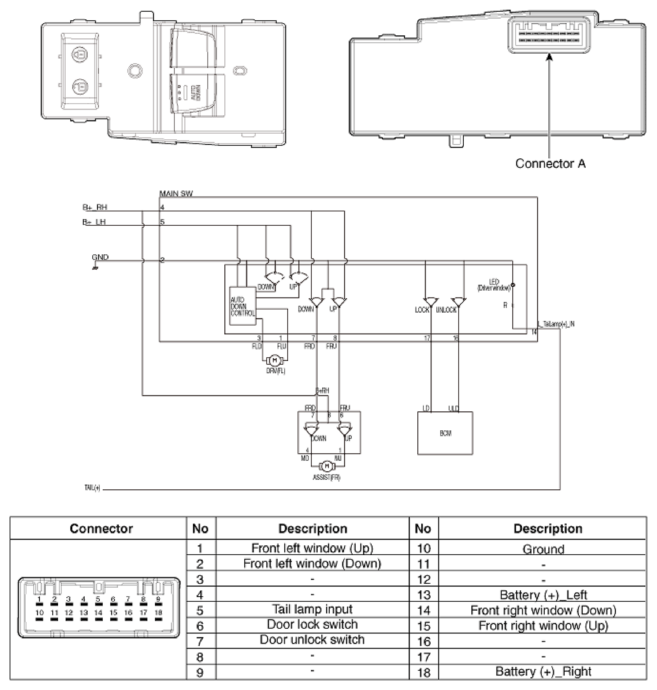

Main Power Window Switch (Front, Driver Auto Down)
Courtesy of HYUNDAI MOTOR AMERICA
