Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Before installing, check that the shift lever and manual control lever are placed in the "N" position.

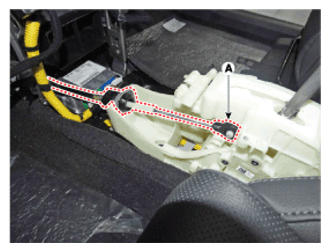

    • Insert the shift cable after checking the direction of projection (A) to prevent wrong assembly.
      G12609303Courtesy of HYUNDAI MOTOR AMERICA
