Repair Procedures: Removal: Notes

Information

In case of bad quality or poor focus, be sure to check the camera lens surface condition and foreign materials.

1. Disconnect the negative (-) battery terminal.
2. Remove the liftgate trim.

   (Refer to Body - "LIFT GATE TRIM ")

3. Remove the liftgate back panel.

   (Refer to Body - "LIFT GATE ")

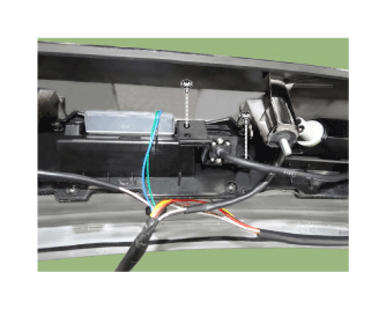

4. Remove the back view camera after loosening the mounting screws.
