Calibration Mode

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

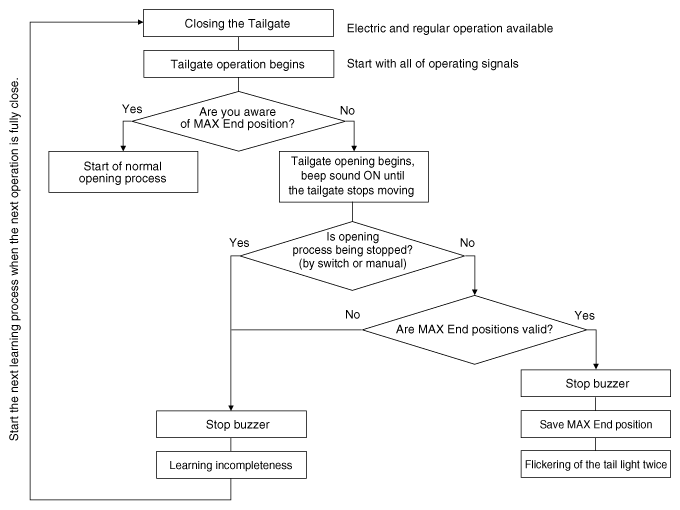

Fig 1: Calibration Mode Flow Chart
G12043018Courtesy of HYUNDAI MOTOR AMERICA
