Engine Control System - 2.0L
>>
Rail Pressure Sensor (RPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

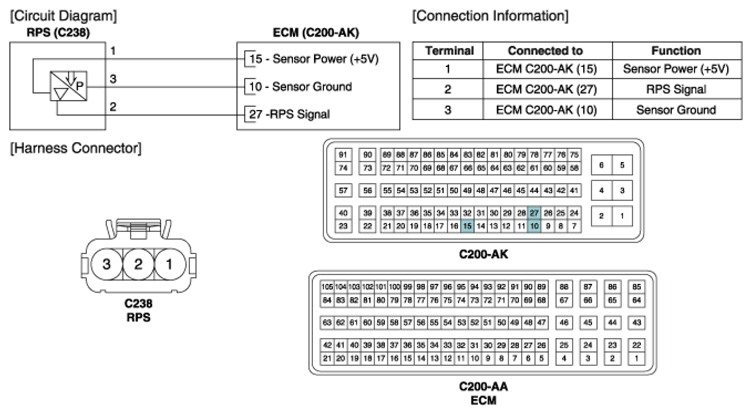

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
