Repair Procedures: Inspection

  1. Turn ignition switch OFF.
  2. Remove the Hybrid Power Control Unit (HPCU) assembly. (Refer to "HPCU ")

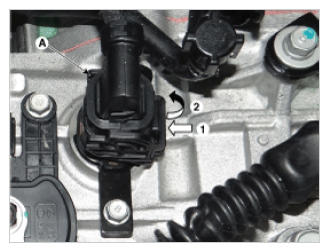

  3. Disconnect the solenoid valve connector (A).
    G12793477Courtesy of HYUNDAI MOTOR AMERICA
  4. Measure the resistance between power terminal (10) and signal terminal (2).

    Specification:  5.1 ± 0.3 Ω
