Valve Body
>>
Components And Components Location
>>
Components Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components Location

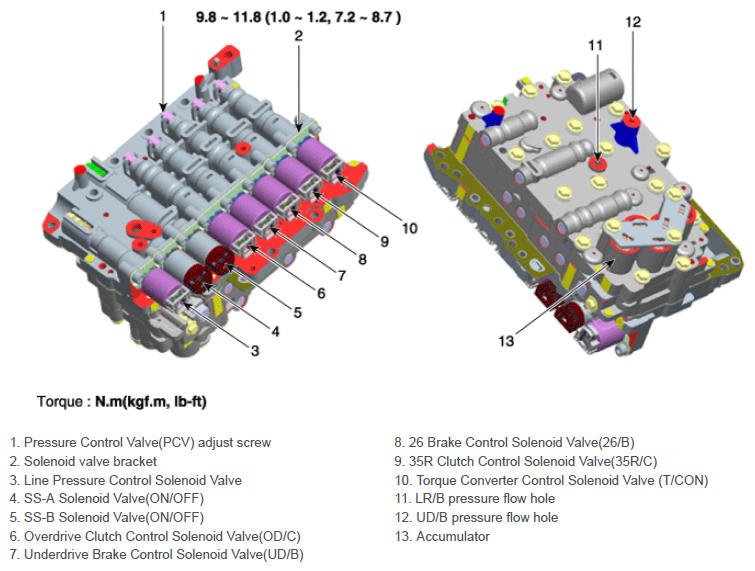

Fig 1: Valve Body Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
