Trunk Switch

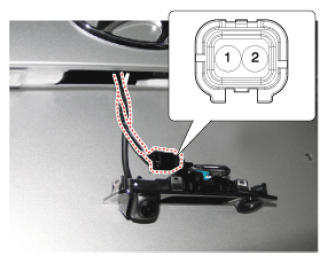

  1. Check for continuity between the tailgate latch terminals.
    G12794943Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
    G12794944Courtesy of HYUNDAI MOTOR AMERICA
