Hyundai
>>
2018
>>
Sonata Limited
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L (Except HEV)
>>
E-CVVT Motor
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

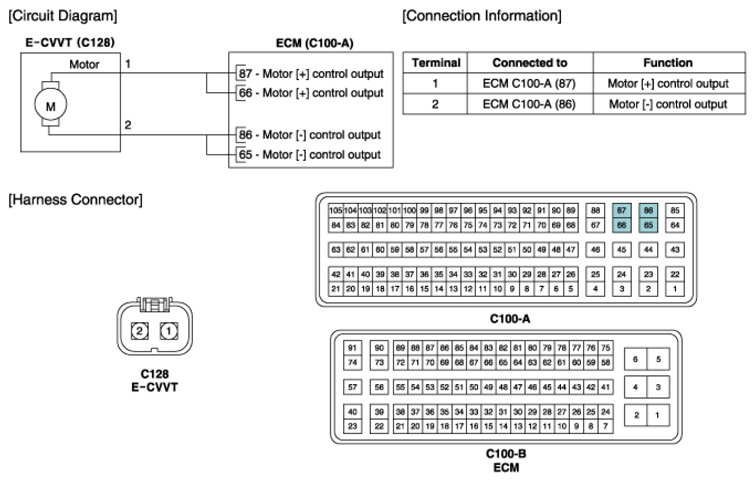

Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
