Components Location

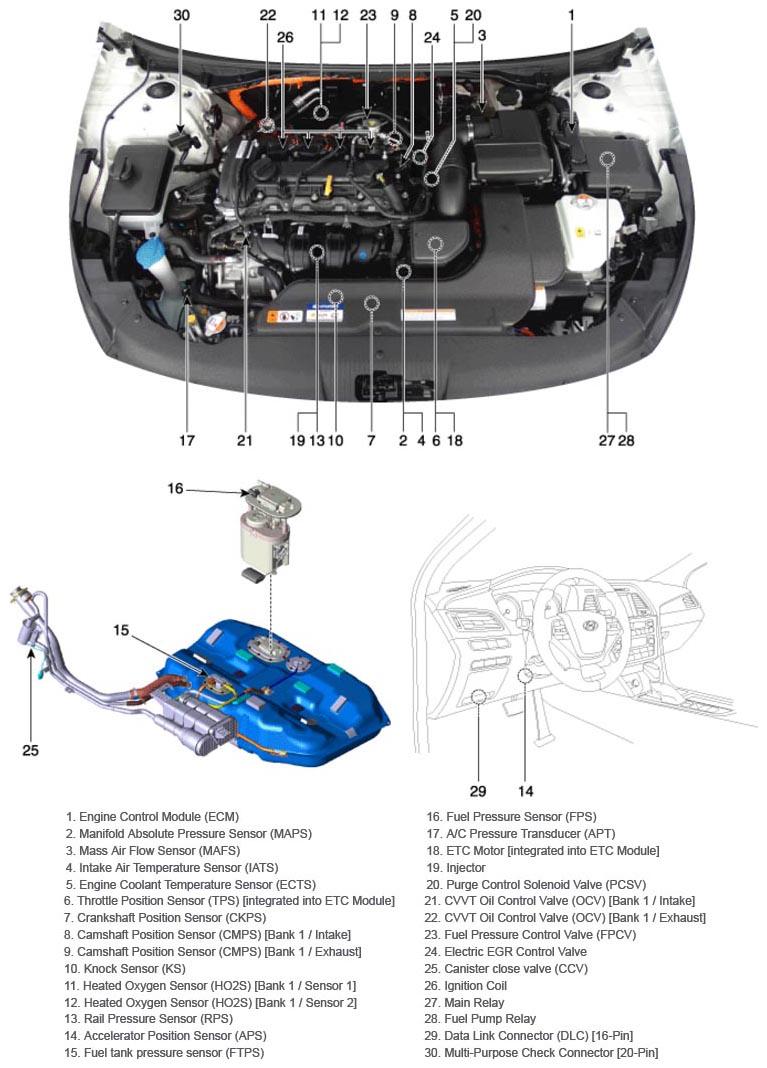

G12762903Courtesy of HYUNDAI MOTOR AMERICA

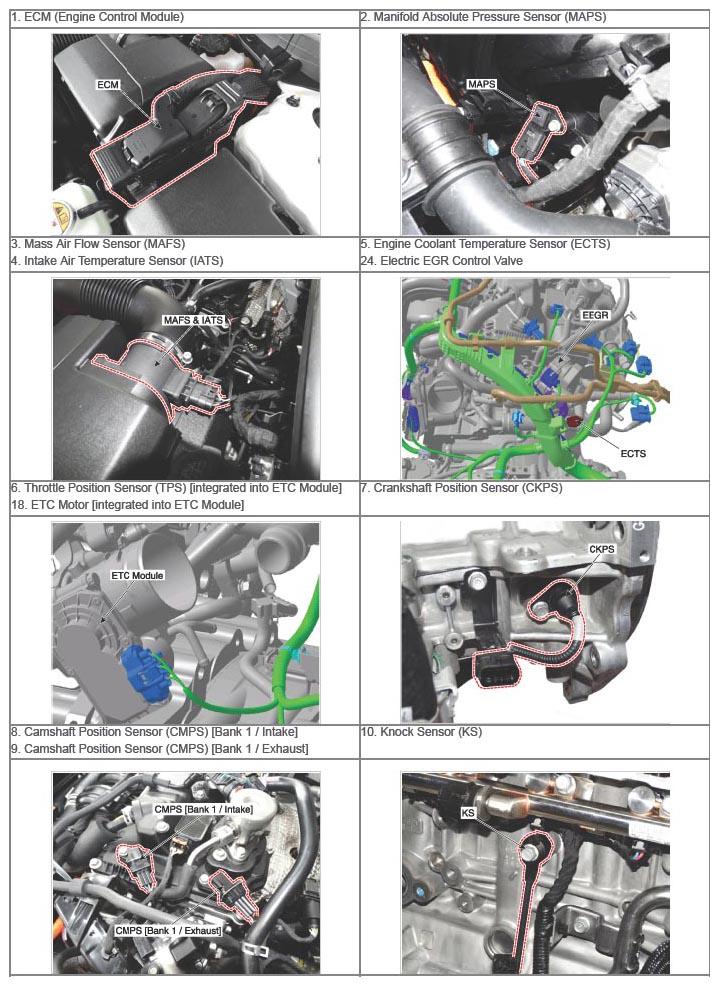

G12762904Courtesy of HYUNDAI MOTOR AMERICA

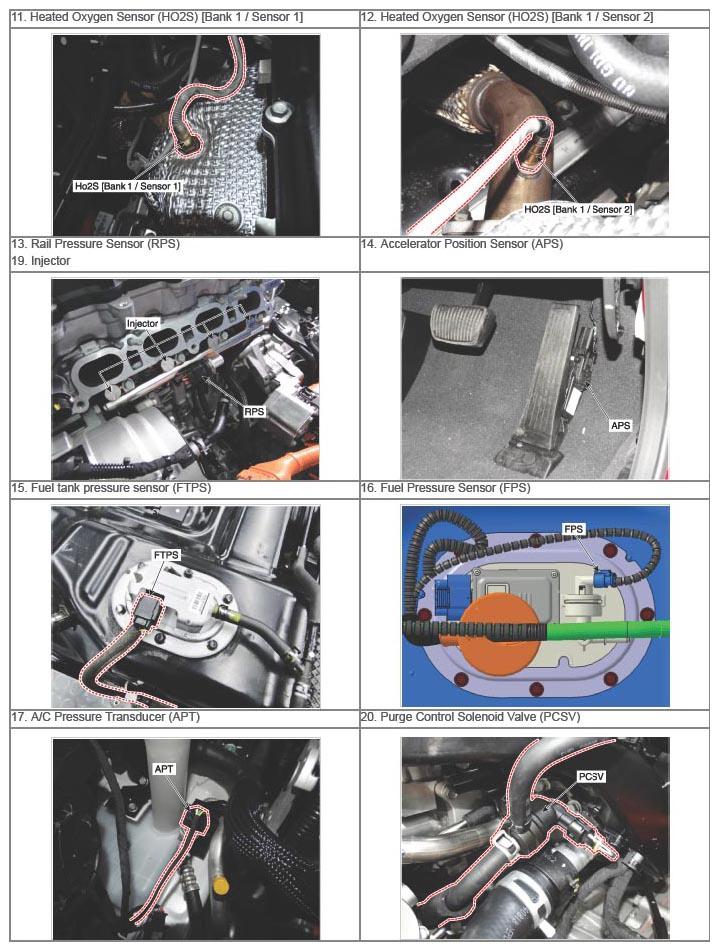

G12762905Courtesy of HYUNDAI MOTOR AMERICA

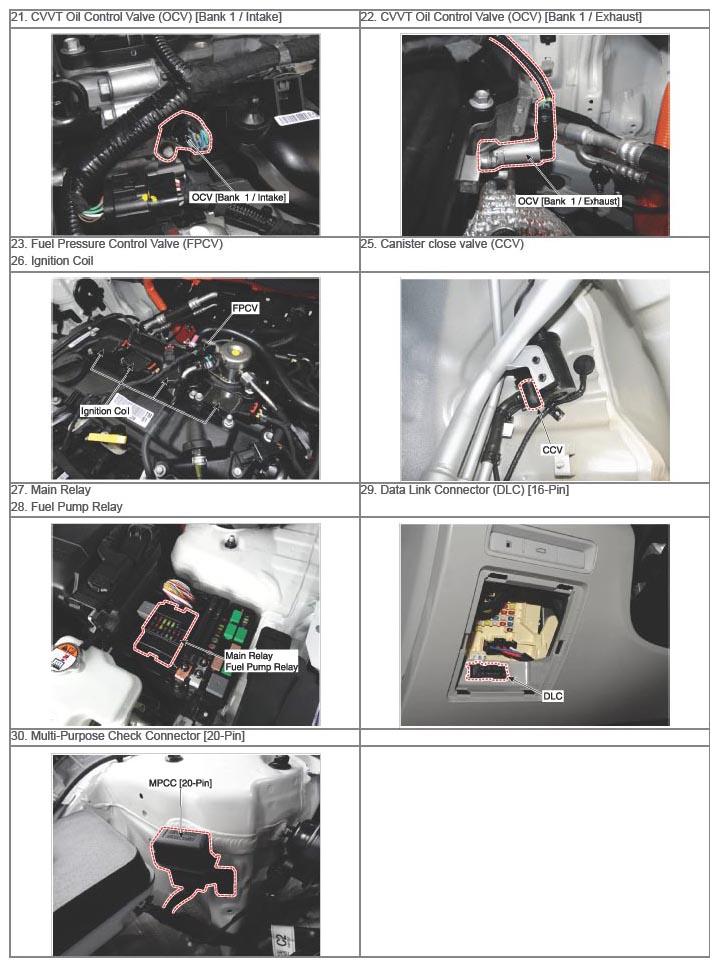

G12762906Courtesy of HYUNDAI MOTOR AMERICA
