Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the EWGA connector (A).

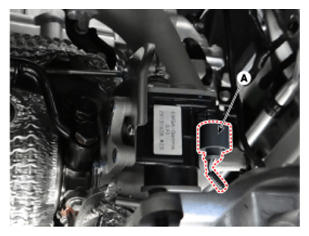

    G12637583Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the exhaust manifold heat protector.

    (Refer to Engine Mechanical System - "EXHAUST MANIFOLD ")

  5. Remove the shaft link assembly (B) after removing the C-ring (A).

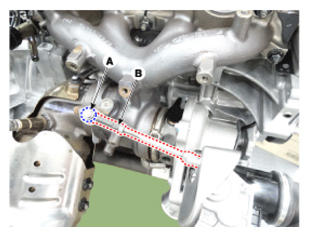

    G12637584Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the turbo charger water pipe installation bolt (A).
  7. Remove the EWGA after removing the bolts (B).

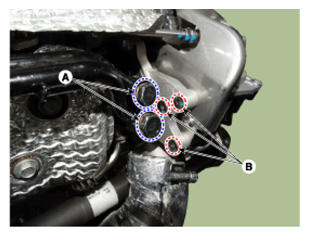

    G12637585Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
