Description And Operation: Operation

Engine condition VIS valve Operation
Medium speed OFF Increasing engine performance in low engine speed by reducing intake interference among cylinders
Low/High speed ON Minimizing intake resistance by shortening intake manifold length and increasing area of air entrance

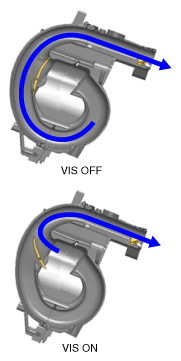

Fig 1: Variable Intake Manifold Solenoid Valve Air Entrance Increasing Area
G12051027Courtesy of HYUNDAI MOTOR AMERICA
