Dual Clutch Transmission Control System (PHEV)
>>
Inhibitor Switch
>>
Repair Procedures
>>
Inspection
>>
Inspection Flow
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

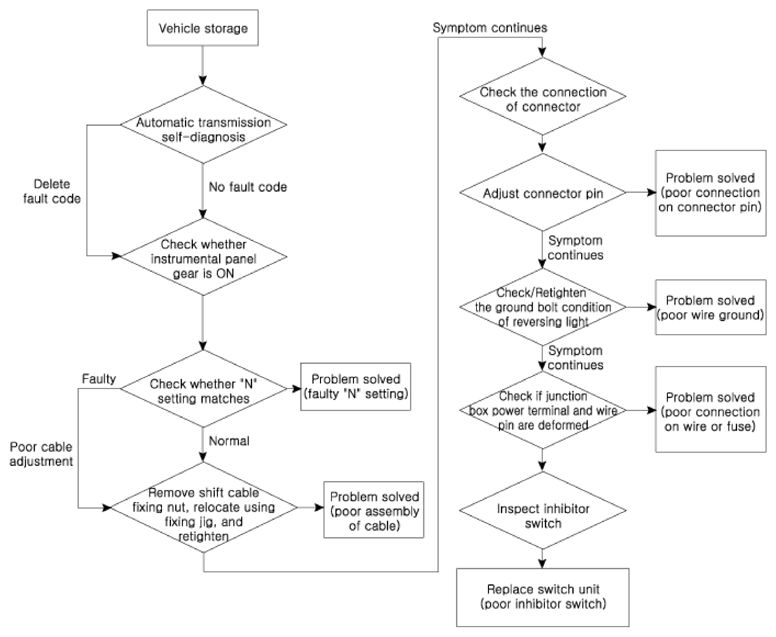

Inspection Flow
Courtesy of HYUNDAI MOTOR AMERICA
