Circuit Diagram: Notes

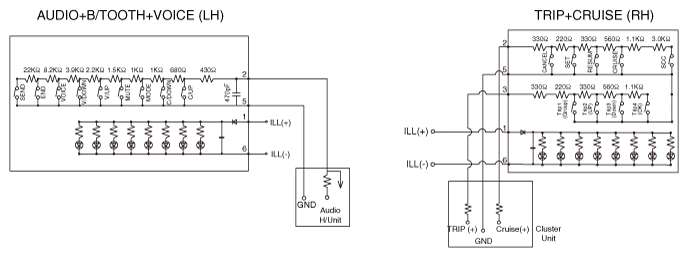

Fig 1: AVN Remote Controller Circuit

G12023307

Courtesy of HYUNDAI MOTOR AMERICA
