Repair Procedures: Removal

Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

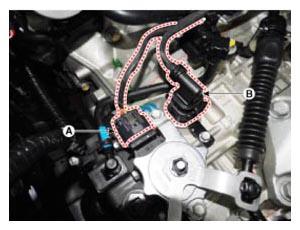

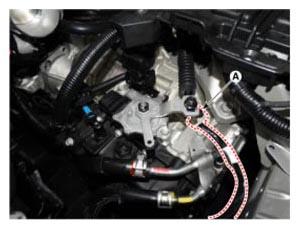

Disconnect the solenoid valve connector (B) and the inhibitor switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

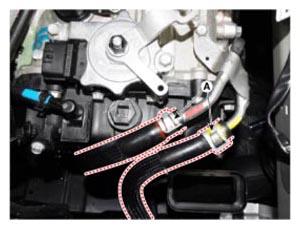

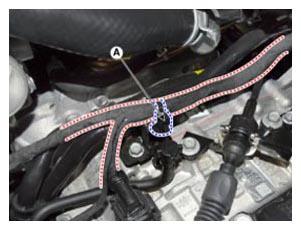

Remove fixing clips (A) of the wiring.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

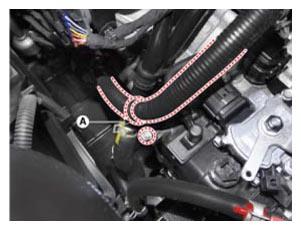

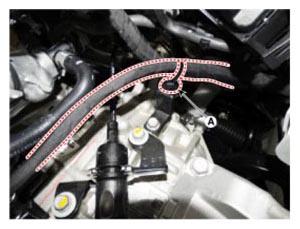

Remove fixing clips (A) of the wiring.

Courtesy of HYUNDAI MOTOR AMERICA

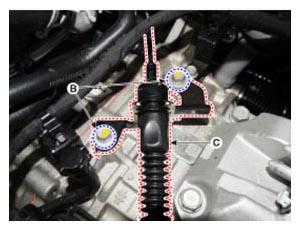

Remove the control cable (C) after removing the nuts (A) and bolts (B).
Tightening Torque:

(B) 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb-ft)

(A) 9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

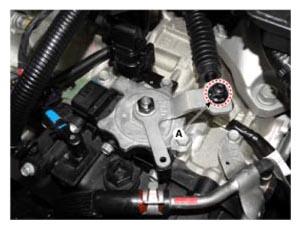

Remove the ground line after removing bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

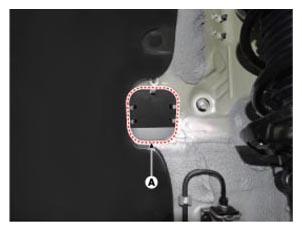

Disconnect the hose (A) after removing the automatic transaxle fluid cooler hose clamp.

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Carefully install the clamp not to damage the hose.
- Install the clamp in a correct direction not to be interfered with other parts.
- After the installation, start the engine and then check if there are any leakages from the hose.
Remove the cowl top cover. (Refer to Body-"COWL TOP COVER ")
Assemble the Engine Support Fixture (Beam No.: 09200-38001 or 09200-3N000, supporter No.: 09200-2S000, adapter No.:09200-2W000).
(Refer to SPECIAL SERVICE TOOLS -"Engine Support Fixture Assembly Drawing")

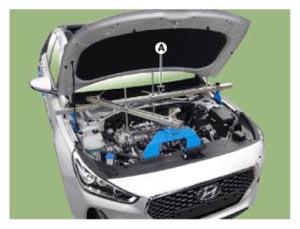

Using the engine support fixture (A), hold the engine and transaxle assembly safely.

Courtesy of HYUNDAI MOTOR AMERICA

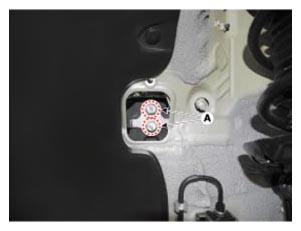

Remove upper mounting bolts (A-2ea) of the automatic transaxle and mounting bolts (B-2ea)of the starter.
Tightening Torque:
1. 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
2. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

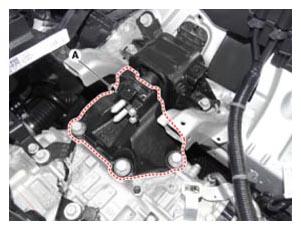

Remove the automatic transaxle mounting bracket cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove mounting bolts (A) of the automatic transaxle support bracket.
Tightening Torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the automatic transaxle support bracket (A).
Tightening Torque:

58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle with a jack.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the drive shaft assembly.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

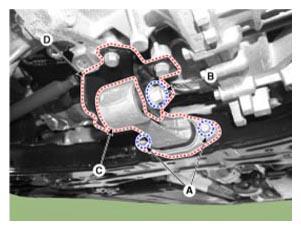

Remove the heater protector (C) after removing the bolt (A) and (B).
Tightening Torque:
1. 11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)
2. 21.6 - 25.5 N.m (2.2 - 2.6 kgf.m, 15.9 - 18.8 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the dust cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

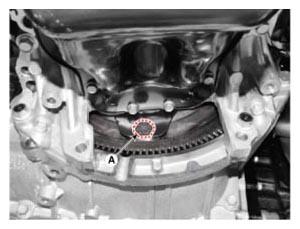

Remove mounting bolts (A) of the Torque converter with rotating the crankshaft.
Tightening Torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

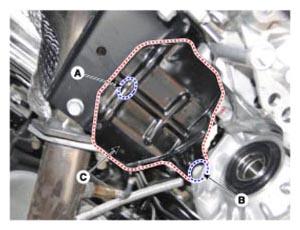

Remove the roll rod bracket (C) after removing bolts (A) and (B).
Tightening Torque:

Bolt (B): 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Bolt (A): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
Remove the roll road support bracket (D).
Tightening Torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the automatic transaxle with a jack after removing mounting bolts (A, B).
Tightening Torque:
1. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
2. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage other system or parts near by when removing the transaxle assembly.
