Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

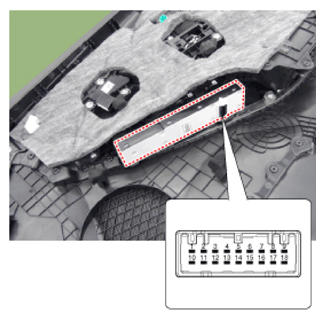

  3. Disconnect the power mirror switch connector from the door trim.
    G12645433Courtesy of HYUNDAI MOTOR AMERICA

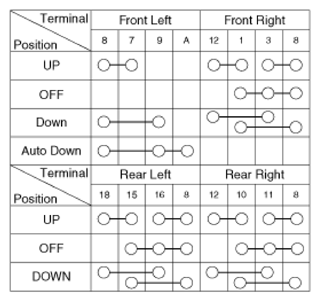

  4. Check for continuity between the terminals in each switch position as displayed below.

    [Power Window Switch Inspection]

    G12645434Courtesy of HYUNDAI MOTOR AMERICA

    [Power Window Lock Switch Inspection]

    G12645435Courtesy of HYUNDAI MOTOR AMERICA
