Components Location

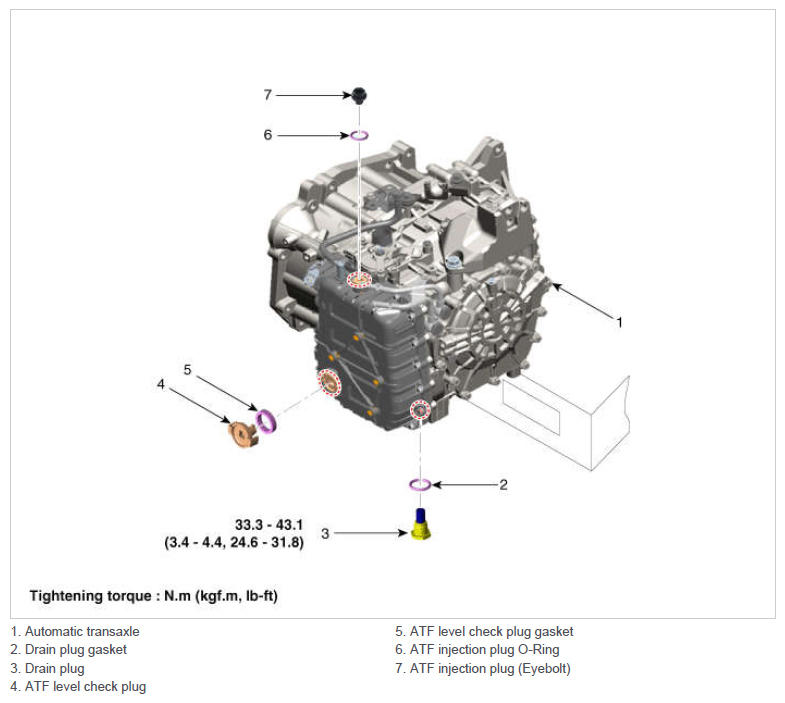

Fig 1: Locating Automatic Transaxle Fluid Components With Torque Specification
G12598785Courtesy of HYUNDAI MOTOR AMERICA
