Repair Procedures: Replacement

  1. Remove the front wheel & tire.

    Tightening torque  :

    88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

    Fig 1: Removing Front Wheel & Tire
    G12125442Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
  2. Disconnect the stabilizer link (A) with the front strut assembly after loosening the nut.

    Tightening torque  :

    98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

    Fig 2: Disconnecting Stabilizer Link With Front Strut Assembly
    G12125443Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the nut and then remove the tie-rod end (A) with the front axle.

    Tightening torque  :

    23.5 ~ 33.3N.m (2.4 ~ 3.4kgf.m, 19.4 ~ 24.6lb-ft)

    Fig 3: Removing Tie-Rod End With Front Axle
    G12125444Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the nut and then remove the lower arm (A).

    Tightening torque  :

    78.5 ~ 88.3N.m (8.0 ~ 9.0kgf.m, 57.9 ~ 65.1lb-ft)

    Fig 4: Removing Lower Arm
    G12125445Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque  :

    32.4 ~ 37.3N.m (3.3 ~ 3.8kgf.m, 23.9 ~ 27.5lb-ft)

    Fig 5: Disconnecting Universal Joint Assembly From Pinion Of Steering Gear Box
    G12125446Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    • Must be replaced with new bolts when assembling. (SEAL-LOCK has been processed)

      SEAL-LOCK Specifications: MS721-39 "TYPE-D" Product: ND industries 1193S

  6. Remove the rubber hanger (A).
    Fig 6: Removing Rubber Hanger
    G12125447Courtesy of HYUNDAI MOTOR AMERICA
  7. Loosen the roll rod (A) mounting bolts and nuts.

    Tightening torque  :

    53.9 ~ 63.7N.m (5.0 ~ 6.5kgf.m, 39.8 ~ 47.0lb-ft)

    Fig 7: Removing Roll Rod Mounting Bolts And Nuts
    G12125448Courtesy of HYUNDAI MOTOR AMERICA
  8. Loosen the bolts & nuts and then remove the front sub frame (A).

    Tightening torque  :

    Sub frame mounting bolt & nut

    156.9 ~ 176.5N.m (16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

    Sub frame stay mounting bolt

    44.1 ~ 53.9N.m (4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

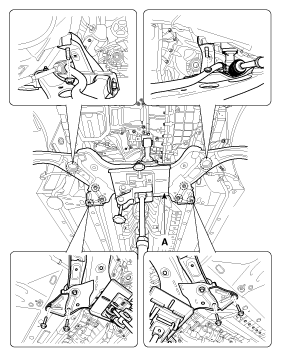

    Fig 8: Removing Front Sub Frame
    G12125449Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the protector (A) and steering gearbox (B) from the front sub frame by loosening the mounting bolts.

    Tightening torque  :

    58.8 ~ 78.8N.m (6.0 ~ 8.0kgf.m, 43.4 ~ 57.9lb-ft)

    LHD

    Fig 9: Removing Protector From Front Sub Frame (LHD)
    G12125450Courtesy of HYUNDAI MOTOR AMERICA

    LHD

    Fig 10: Removing Steering Gearbox From Front Sub Frame (LHD)
    G12125451Courtesy of HYUNDAI MOTOR AMERICA

    RHD

    Fig 11: Removing Protector From Front Sub Frame (RHD)
    G12125452Courtesy of HYUNDAI MOTOR AMERICA

    RHD

    Fig 12: Removing Steering Gearbox From Front Sub Frame (RHD)
    G12125453Courtesy of HYUNDAI MOTOR AMERICA
  10. Installation is the reverse of removal.
  11. Check the wheel alignment.

    (Refer to ALIGNMENT .)
