Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Check for DTCs.NOTE:
- If a DTC is present, perform troubleshooting in accordance with the procedure for that DTC. (Refer to DTC INDEX )

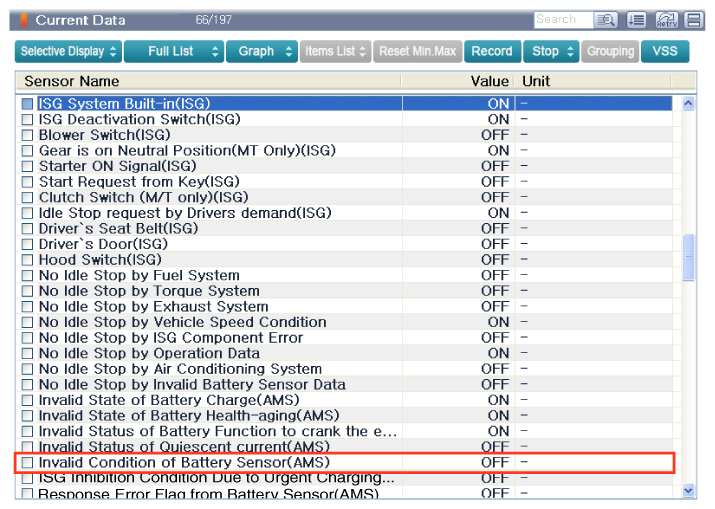

- Check if battery sensor status is normal on current data by using GDS.
If its value is ON, replace the battery sensor.
- Invalid Condition of Battery sensor (AMS) = OFF
NOTE:
- Battery sensor may operate abnormally if the parasitic current is more than 100 mA.
Therefore, if battery sensor signal error occurs, inspect the vehicle parasitic current first before replacing the battery sensor.
(Refer to "BATTERY ")
