Section 17 (Cylinder Block - 1.6L T-GDI)
>>
Components And Components Location
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

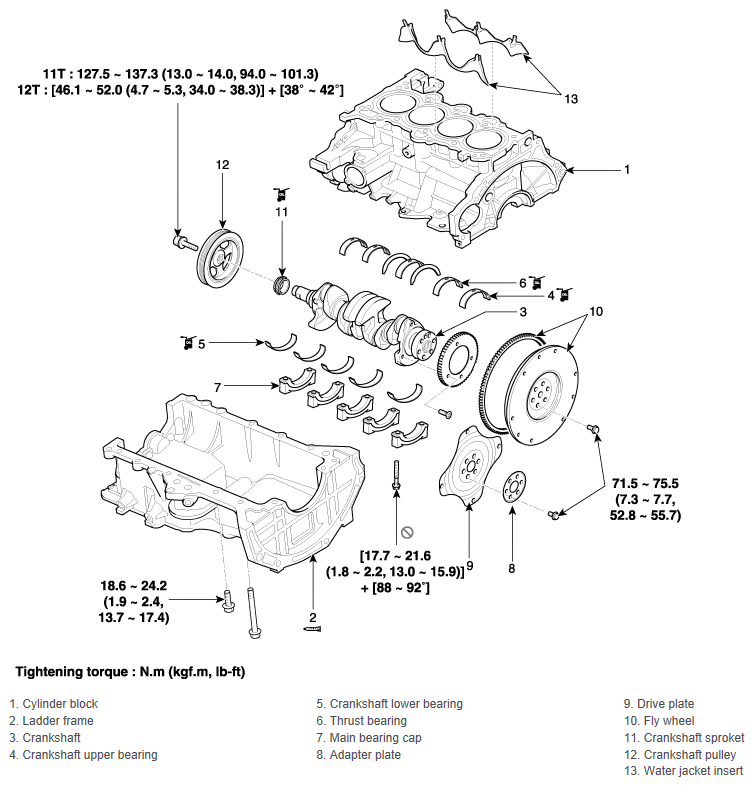

Fig 1: Locating Cylinder Block Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

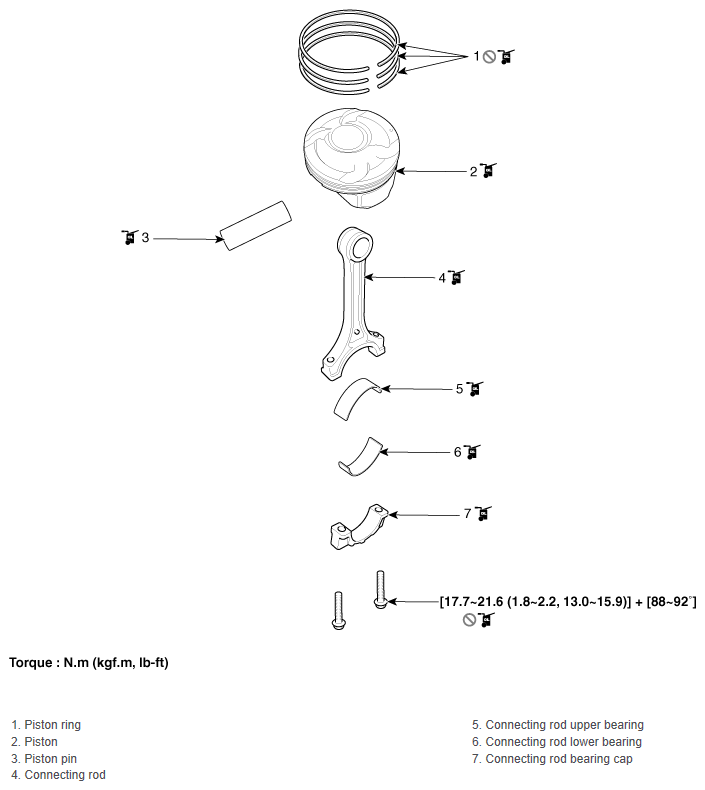

Fig 2: Locating Cylinder Block Components With Torque Specifications (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
