Hyundai
>>
2017
>>
Veloster Base, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L GDI
>>
Purge Control Solenoid Valve (PCSV)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

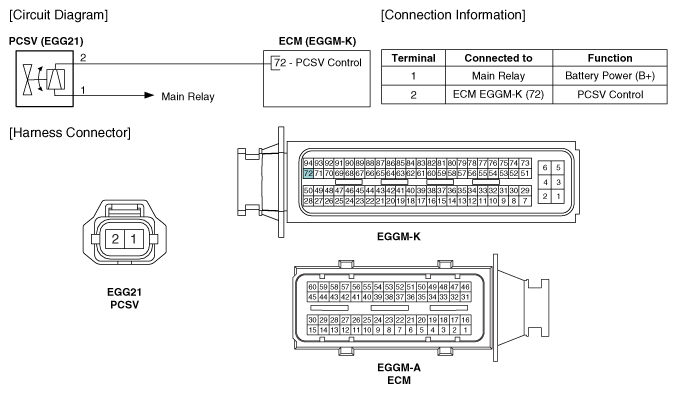

Fig 1: Purge Control Solenoid Valve Circuit And Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
