Components (1)

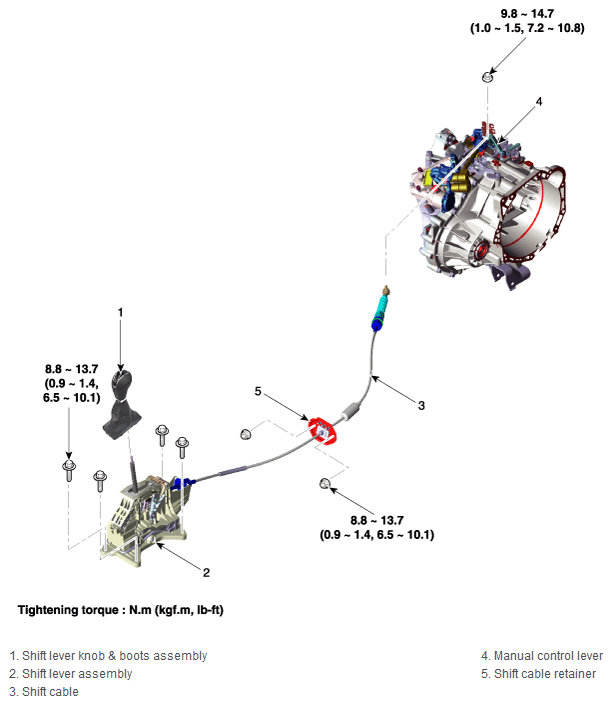

Fig 1: Shift Lever Components With Torque Specification

G12039642

Courtesy of HYUNDAI MOTOR AMERICA
