Tucson Value, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel Delivery System - 1.6L
>>
Fuel Pump Control Module (FPCM)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

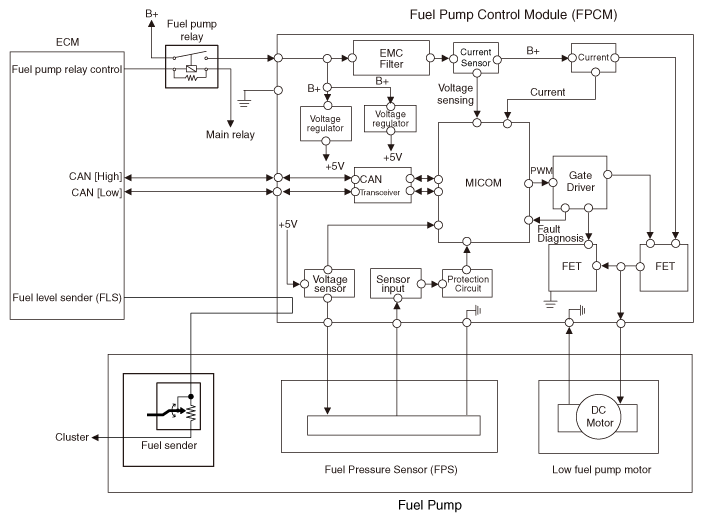

Circuit Diagram
Fig 1: Fuel Pump Control Module Circuit
Courtesy of HYUNDAI MOTOR AMERICA
