Monitoring DTC Status

  1. Connect GDS to "DATA LINK CONNECTOR (DLC)".
  2. IG key "ON", Engine "OFF".
  3. Select "Diagnostic Trouble Codes(DTC)  " with GDS.
  4. Monitor the diagnostic trouble code and present of the trouble code.
  5. Erase the DTC and operate the vehicle within DTC Enable conditions in General information.

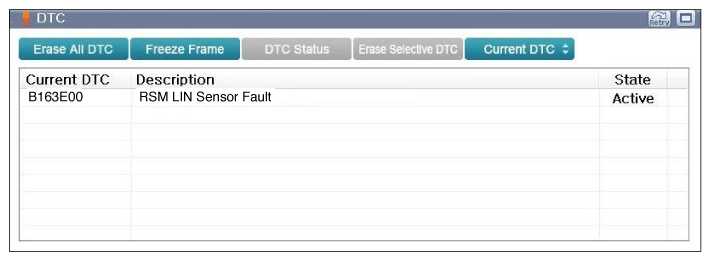

    Fig 1: Screen Display - DTC Description
    G12046310Courtesy of HYUNDAI MOTOR AMERICA
  6. Is the DTC output again?

    YES

    NO

    • Fault is intermittent caused by poor contact in "RAIN SENSOR"/"BCM"'s connector or "BCM" memory was not cleared after repair.

      → Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

      → Repair or replace as necessary, go to "Verification of Vehicle Repair " procedure.
