Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

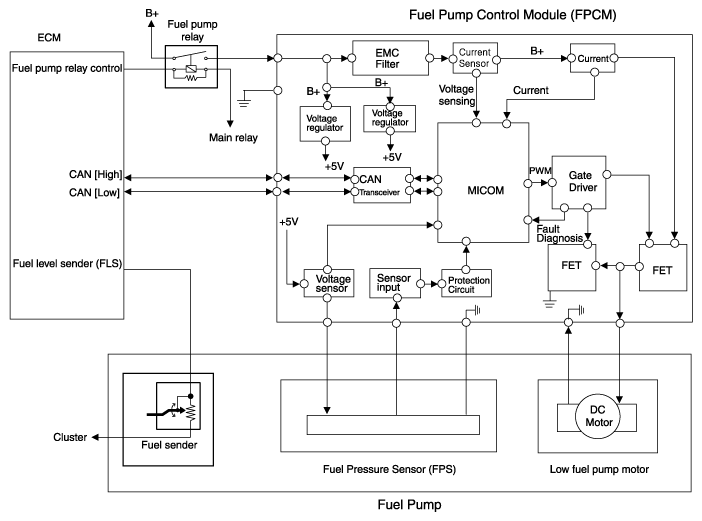

Fig 1: Fuel Pump Control Module (FPCM) Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
