Signal Waveform

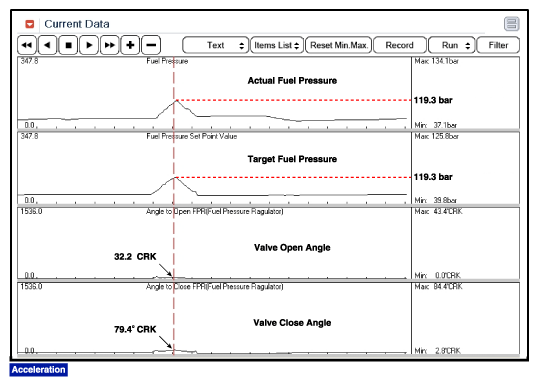

Fig 1: Screen Display - Signal Waveform Of Fuel Pressure Regulator Valve
G11994436Courtesy of HYUNDAI MOTOR AMERICA
