Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L (Except HEV)
>>
Boost Pressure Sensor (BPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

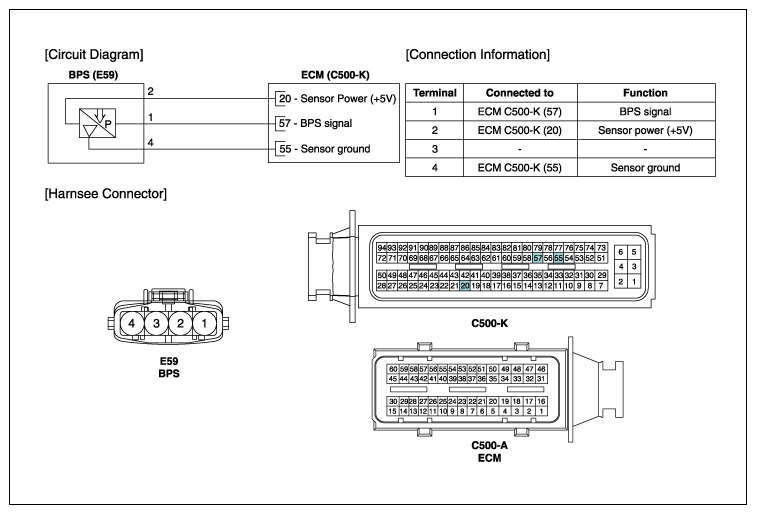

Fig 1: Boost Pressure Sensor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
