Smart Key Status Check

WARNING: This page is about a different car, the 2016 Hyundai Sonata and 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK Status INFO".

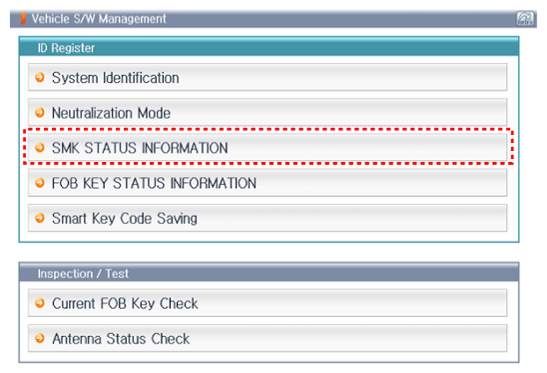

    Fig 1: Screen Display - Smart Key Status Check
    G10567584Courtesy of HYUNDAI MOTOR AMERICA

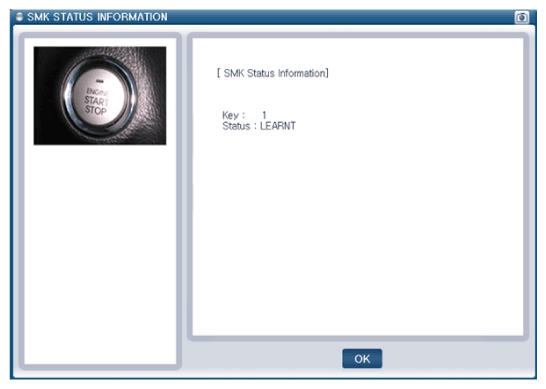

    Fig 2: Screen Display - SMK Status INFO
    G10567585Courtesy of HYUNDAI MOTOR AMERICA
