Component Location

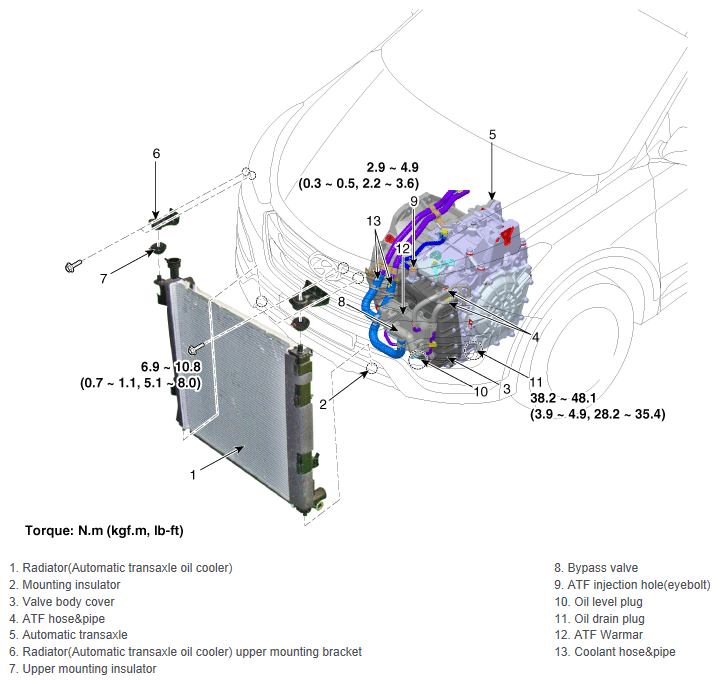

Fig 1: Hydraulic System Components With Torque Specifications (1 Of 2)
G12034213Courtesy of HYUNDAI MOTOR AMERICA

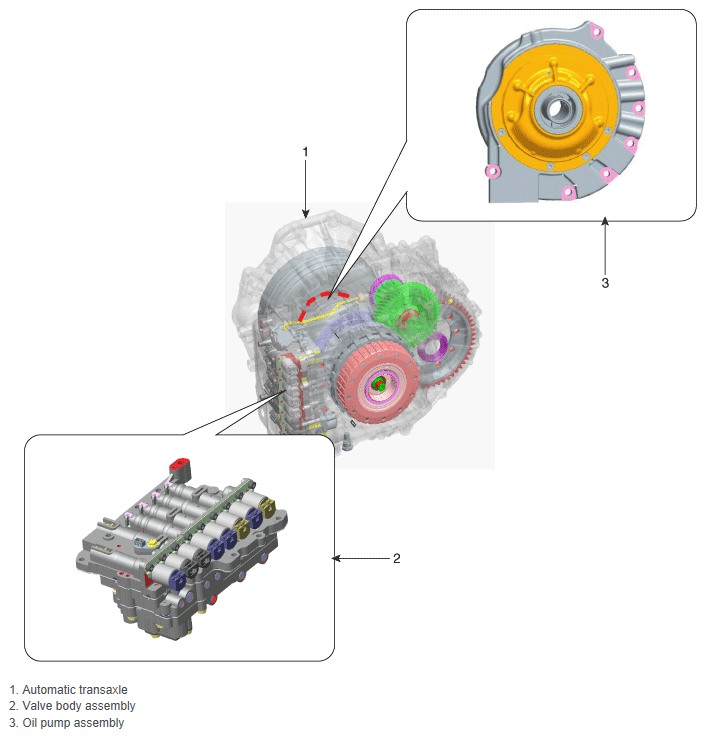

Fig 2: Hydraulic System Components (2 Of 2)
G12034214Courtesy of HYUNDAI MOTOR AMERICA
