DTC P0620: Alternator Control Circuit
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

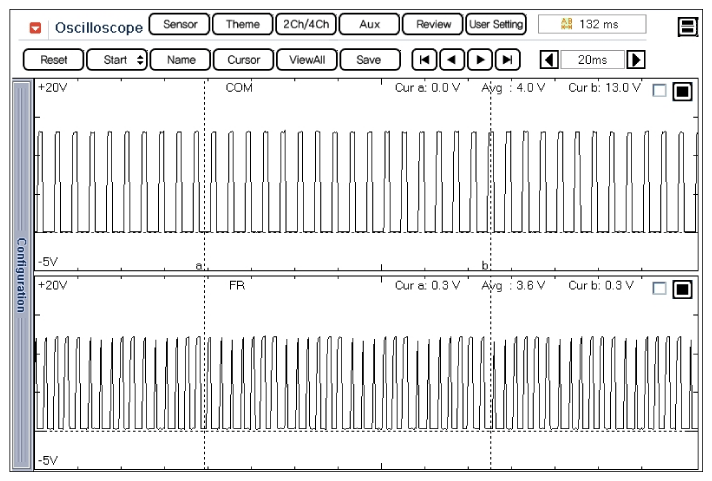

Fig 1: Normal Waveforms Of COM & FR Terminal Of Alternator At Idle
Courtesy of HYUNDAI MOTOR AMERICA

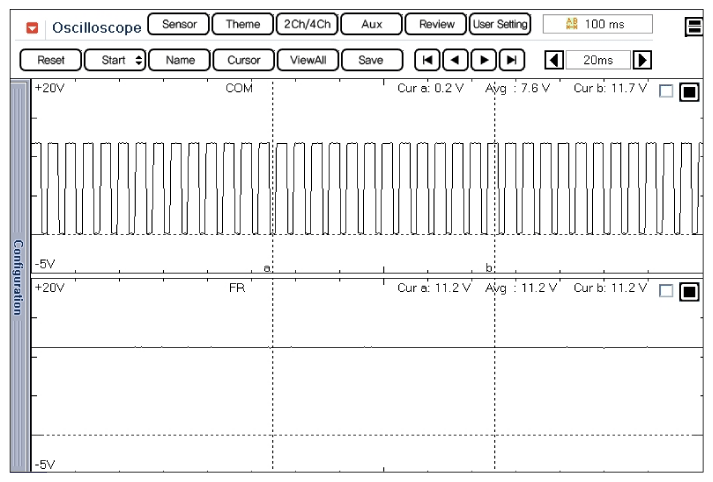

Fig 2: Normal Waveforms Of COM & FR Terminal Of Alternator With Connector Disconnected Condition At IG ON
Courtesy of HYUNDAI MOTOR AMERICA
