Multi-View Camera System
>>
Pantoscopic Camera
>>
Components And Components Location
>>
Components
>>
Ultra Optical Camera - Rear
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ultra Optical Camera - Rear

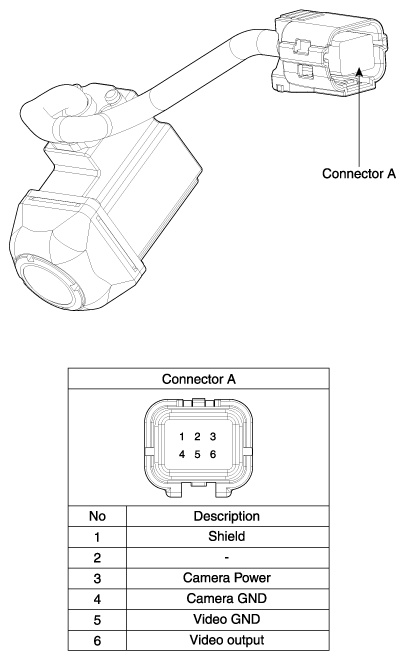

Fig 1: Ultra Optical Camera (Rear) Connector & Terminals Description Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

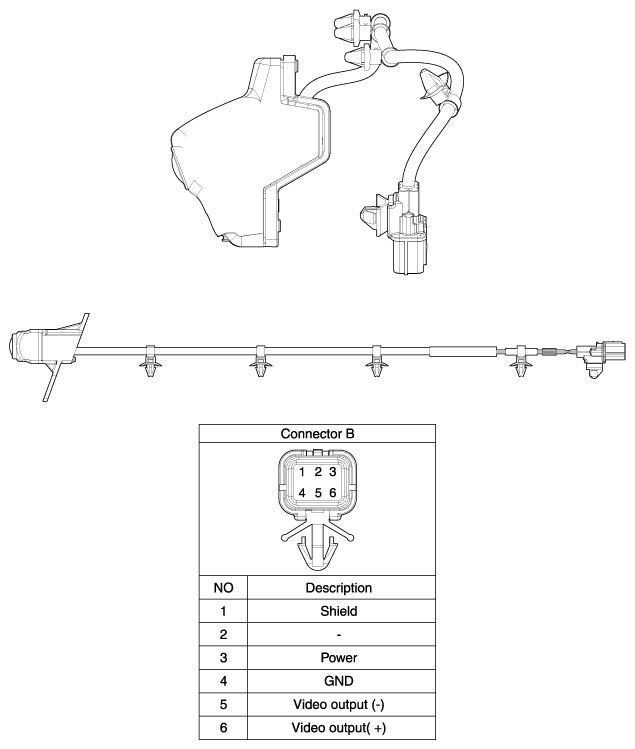

Fig 2: Ultra Optical Camera (Rear) Connector & Terminals Description Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
