Ultra Optical Camera - RH/LH

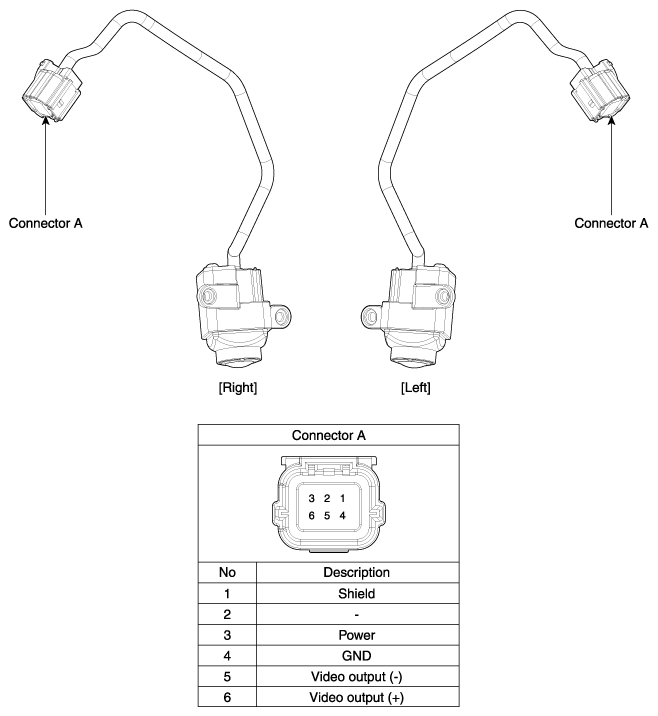

Fig 1: Ultra Optical Camera (RH/LH) Connector & Terminals Description Chart
G12036497Courtesy of HYUNDAI MOTOR AMERICA
