Signal Waveform

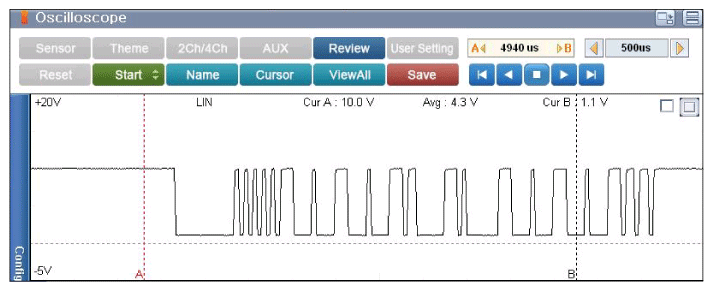

Fig 1: Scantool Display - Normal Waveform When Obstacles Detected By Sensor At Shift Lever D After IGN1 ON
G12052799Courtesy of HYUNDAI MOTOR AMERICA
