Signal Waveform
Fig 1: Screen Display - Duty Control EEGR Motor (-) At Deceleration Or Idle
Courtesy of HYUNDAI MOTOR AMERICA

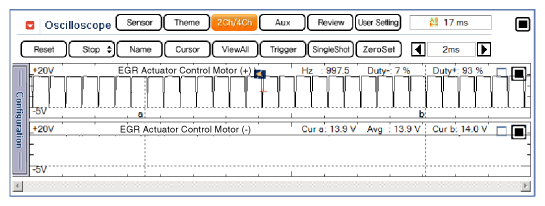

Fig 2: Screen Display - Duty Control EEGR Motor (+) At Acceleration
Courtesy of HYUNDAI MOTOR AMERICA
