Charging System: Battery: Troubleshooting

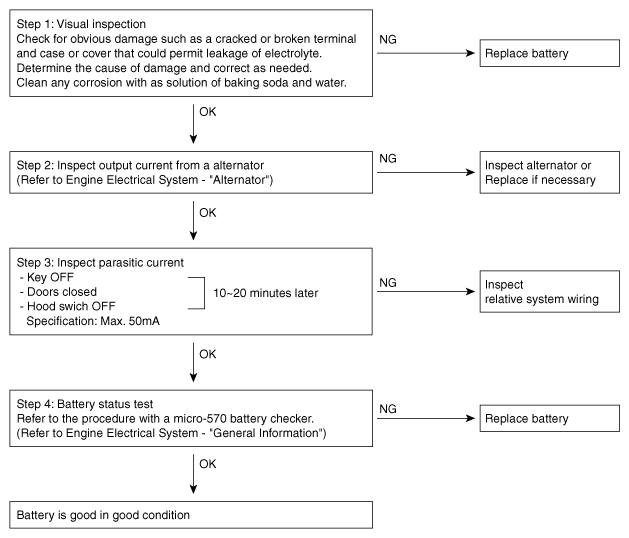

Fig 1: Battery Troubleshooting Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
