Components And Components Location

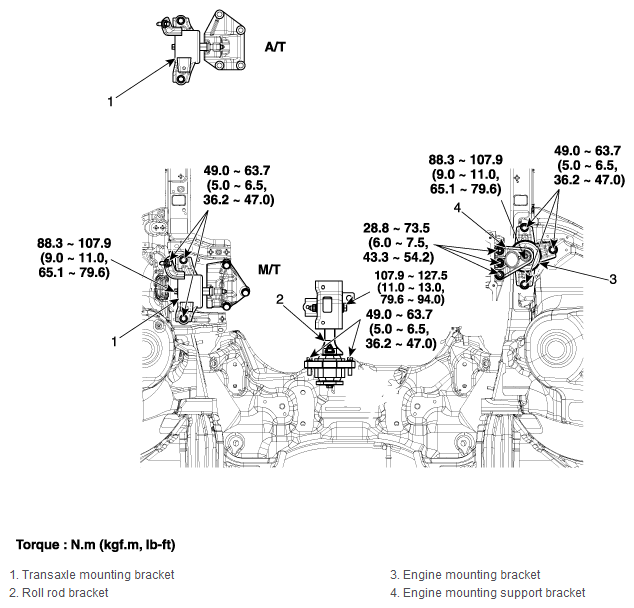

Fig 1: Engine Mounting Components With Torque Specification
G12074005Courtesy of HYUNDAI MOTOR AMERICA
