Components And Components Location: Components

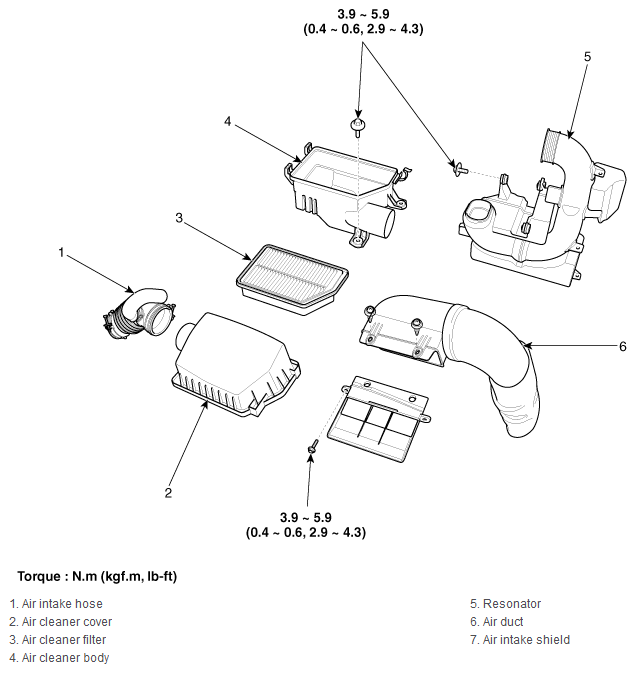

Fig 1: Air Cleaner Components With Torque Specification
G12074278Courtesy of HYUNDAI MOTOR AMERICA
