Circuit Diagram

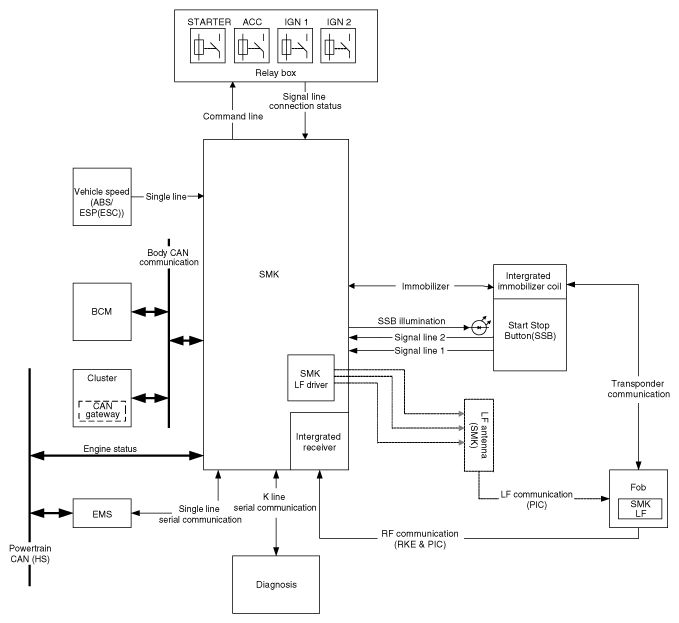

Fig 1: Button Engine Start System Circuit

G12077007

Courtesy of HYUNDAI MOTOR AMERICA
